Belt rakes for tractor front linkage

Val d'Ultimo_20190830-WA0017

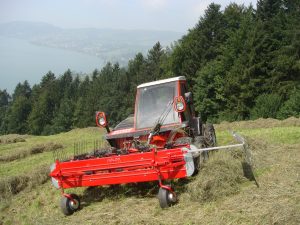

11.08_4 copia
11.08_10ritoc
230_5-scont
ranghinatore-Ref
300.5D 005rit

The BELT RAKES allow to carry out the operations for a good haymaking:

  • Turning grass
  • Delivering at the side, making rows
  • Spreading

The rakes can fit to any tractor with power take-off 540 or 1000 r.p.m.
They are built to provide top performance on any sort of ground, even the very rough land, thanks to the light but strong structure and linkages that closely connect the machine and the tractor.
The combs are fastened on trapezoidal belts with special bearings that do not require greasing.
We optimized the hay processing with the best teeth inclination, so that the hay preserves its softness and nutritive power, the rows result soft and airy.

A wide range of models satisfies all the requirements in terms of working width.

In the PRO rakes all the principal components are reinforced.

Technical specifications

Models:

190

  • Combs no. 11

  • Double teeth per comb no. 4

  • Belts 32 mm

  • Pneumatic wheels 15x6.00-6"

  • Working width 190 cm

  • Total width 220 cm

  • Weight 210 kg
  •

210

  • Combs no. 12

  • Double teeth per comb no. 4

  • Belts 32 mm

  • Pneumatic wheels 15x6.00-6"

  • Working width 210 cm

  • Total width 240 cm

  • Weight 245 kg
  •

230

  • Combs no. 13

  • Double teeth per comb no. 4 - 5

  • Belts 32 mm

  • Pneumatic wheels 15x6.00-6"

  • Working width 230 cm

  • Total width 260 cm

  • Weight 255 - 265 kg
  •

230 PRO

  • Combs no. 13

  • Double teeth per comb no. 5 - 6

  • Belts 40 mm

  • Pneumatic wheels 16x6.50-8"

  • Working width 230 cm

  • Total width 260 cm

  • Weight 285 - 295 kg
  •

250

  • Combs no. 14

  • Double teeth per comb no. 4 - 5

  • Belts 32 mm

  • Pneumatic wheels 15x6.00-6"

  • Working width 250 cm

  • Total width 280 cm

  • Weight 290 - 300 kg
  •

250 PRO

  • Combs no. 14

  • Double teeth per comb no. 5 - 6

  • Belts 40 mm

  • Pneumatic wheels 16x6.50-8"

  • Working width 250 cm

  • Total width 280 cm

  • Weight 325 - 335 kg
  •

260

  • Combs no. 15

  • Double teeth per comb no. 4 - 5

  • Belts 32 mm

  • Pneumatic wheels 15x6.00-6"

  • Working width 260 cm

  • Total width 300 cm

  • Weight 300 - 310 kg
  •

260 PRO

  • Combs no. 15

  • Double teeth per comb no. 5 - 6

  • Belts 40 mm

  • Pneumatic wheels 16x6.50-8"

  • Working width 260 cm

  • Total width 300 cm

  • Weight  330 - 340 kg
  •

300 PRO

  • Combs no. 16

  • Double teeth per comb no. 5 - 6

  • Belts 40 mm

  • Pneumatic wheels 16x6.50-8"

  • Working width 280 cm

  • Total width 320 cm

  • Weight 340 - 350 kg
  •

Optional:

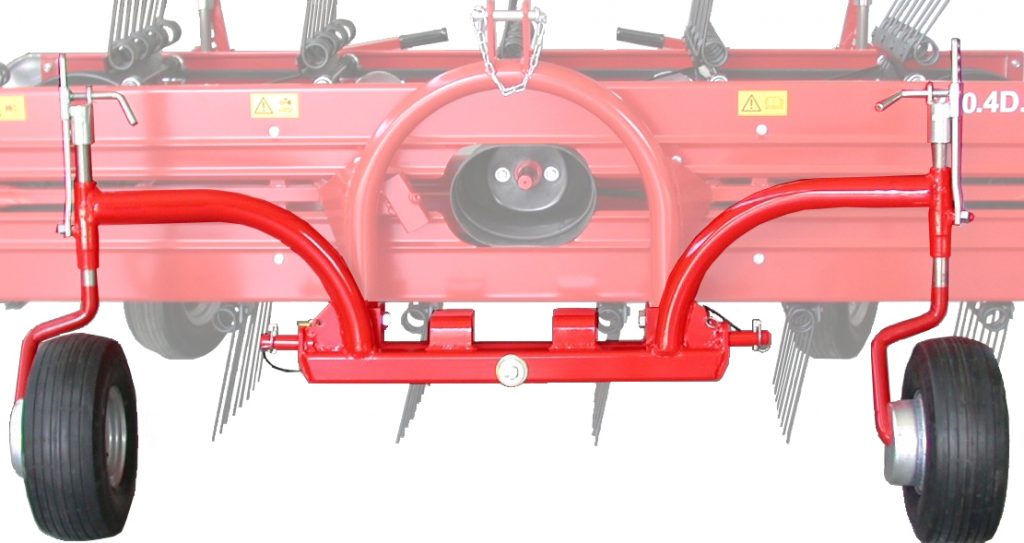

Connections to the tractor

In its standard version, the hay rake features a 3-points connection (with swinging links).
On request the hay rake can be provided with:

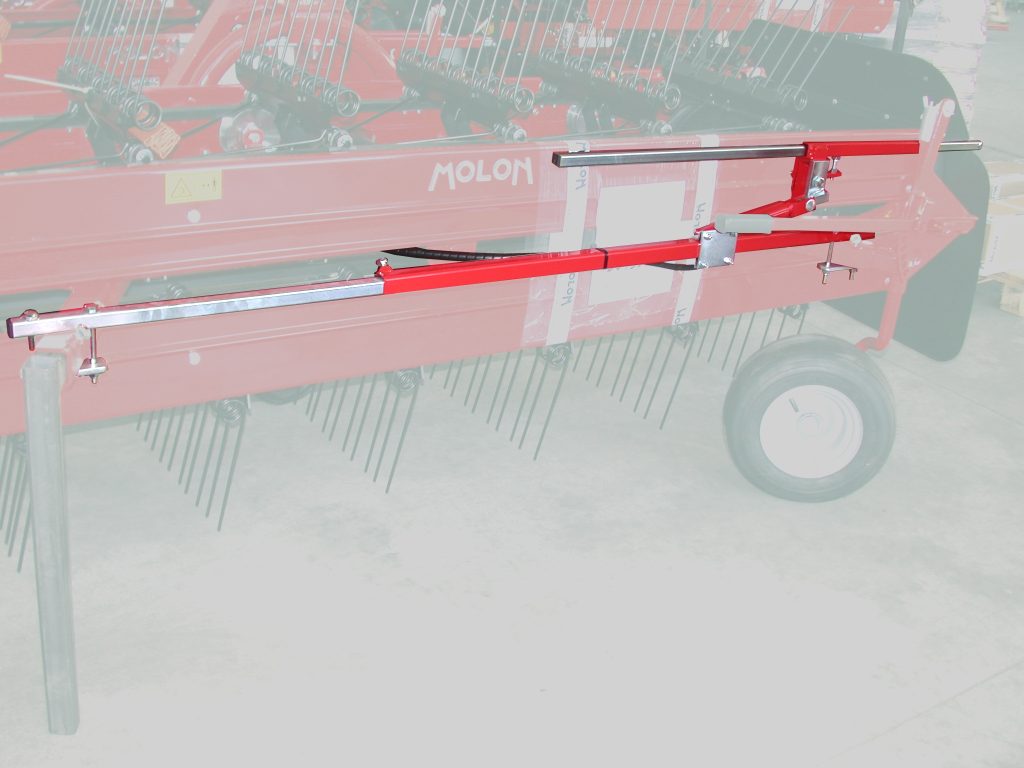

Hydraulic haystop baffle

  • Single control to adjust row width and lift up the baffle
  • Supplied with a movement speed controller
  • Optional kit that can be easily installed without modifications to the hay rake.
