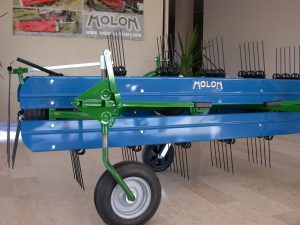

The BELT RAKES allow to carry out the operations for a good haymaking:
- Turning grass
- Delivering at the side, making rows
- SpreadingThe hay rakes can fit to any tractor with 3-point connection.
Our hay rakes are built to provide top performance on any sort of ground, even the very rough land, thanks to the light but strong structure and linkages that closely connect the machine and the tractor.
The combs are fastened on trapezoidal belts with special bearings that do not require greasing.
We optimized the hay processing with the best teeth inclination, so that the hay preserves its softness and nutritive power, the rows result soft and airy.
A wide range of models satisfies all the requirements in terms of working width.
Technical specifications
Models:
MINOR MINI 120
-
Combs no. 8
-
Double teeth per comb no. 2
-
Belt no. 1 of 32 mm
-
Full rubber wheels
-
Working width 120 cm
-
Total width 155 cm
-
Weight 85 kg
-
MINOR 140
-
Combs no. 9
-
Double teeth per comb no. 2
-
Belts no. 2 of 32 mm
-
Pneumatic wheels 3.50-8
-
Working width 140 cm
-
Total width 175 cm
-
Weight 155 kg
-
160.3D.
-
Combs no. 10
-
Double teeth per comb no. 3
-
Belts no. 2 of 32 mm
-
Pneumatic qheels 3.50-8
-
Working width 160 cm
-
Total width 200 cm
-
Weight 180 kg
-
180.3D.
-
Combs no. 11
-
Double teeth per comb no. 3
-
Belts no. 2 of 32 mm
-
Pneumatic wheels 3.50-8
-
Working width 180 cm
-
Total width 220 cm
-
Weight 190 kg
-
210.3D.
-
Combs no. 12
-
Double teeth per comb no. 3
-
Belts no. 2 of 32 mm
-
Pneumatic wheels 3.50-8
-
Working width 210 cm
-
Total width 240 cm
-
Weight 230 kg
-
230.3D.
-
Combs no. 13
-
Double teeth per comb no. 3
-
Belts no. 2 of 32 mm
-
Pneumatic wheels 3.50-8
-
Working width 230 cm
-
Total width 260 cm
-
Weight 240 kg
-
