Belt rakes for motor mowers and walking tractors

MOLON belt rakes are exceptionally light and manoeuvrable and can be driven by the power take-off of all the standard motor mowers and walking tractors.

They operate as our belt rakes for 4-wheel tractors, by turning the hay so delicately that it remains soft for the subsequent processing.

The technical solutions adopted for the steering gear and adjustment of working height result easy, effective and safe in operation.

Technical specifications

MINI

- 1 belt 32 mm
- 2 double teeth per comb
- full rubber wheels
- working width 100, 120 or 140 cm
- weight between 80 and 90 kg
- available with steering lever or swivel wheels

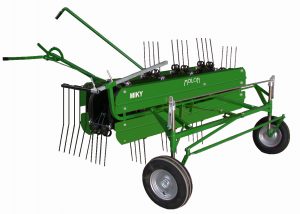

MIKY

- 2 belts 32 mm
- 2 double teeth per comb
- pneumatic wheels
- lever for height adjustment from driver's place
- working width 120 or 140 cm
- weight 140 or 150 kg
- steering lever

MAJOR

- 2 belts 32 mm
- 2 or 3 double teeth per comb
- full rubber or pneumatic wheels
- working width from 120 to 210 cm
- weight between 120 and 200 kg
- available with steering lever or swivel wheels

Models:

MINI 100

  • Combs no. 7

  • Double teeth per comb no. 2

  • Working width 100 cm

  • Total width 140 cm

  • Weight 80 kg

  •

MINI 120

  • Combs no. 8

  • Double teeth per comb no. 2

  • Working width 120 cm

  • Total width 155 cm

  • Weight 85 kg

  •

MINI 140

  • Combs no. 9

  • Double teeth per comb no. 2

  • Working width 140 cm

  • Total width 175 cm

  • Weight 90 kg

  •

MIKY 120

  • Combs no. 8

  • Double teeth per comb no. 2

  • Working width 120 cm

  • Total width 155 cm

  • Weight 140 kg

  •

MIKY 140

  • Combs no. 9

  • Double teeth per comb no. 2

  • Working width 140 cm

  • Total width 175 cm

  • Weight 150 kg

  •

MAJOR 120

  • Combs no. 8

  • Double teeth per comb no. 2

  • Working width 120 cm

  • Total width 155 cm

  • Weight 120 kg

  •

MAJOR 140

  • Combs no. 9

  • Double teeth per comb no. 2

  • Working width 140 cm

  • Total width 175 cm

  • Weight 130 kg

  •

MAJOR 160

  • Combs no. 10

  • Double teeth per comb no. 2 - 3

  • Working width 160 cm

  • Total width 195 cm

  • Weight 180 - 190 kg

  •

MAJOR 180

  • Combs no. 11

  • Double teeth per comb no. 2 - 3

  • Working width 180 cm

  • Total width 210 cm

  • Weight 185 - 195 kg

  •

MAJOR 210

  • Combs no. 12

  • Double teeth per comb no. 2 - 3

  • Working width 210 cm

  • Total width 240 cm

  • Weight 190 - 200 kg

  •
